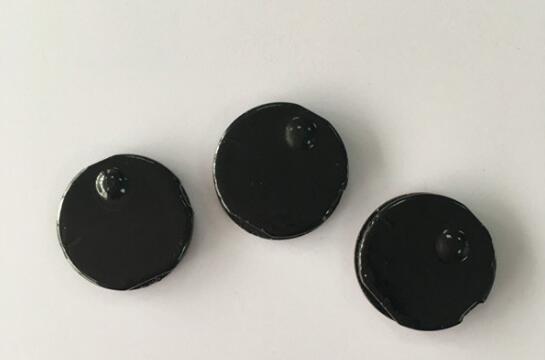

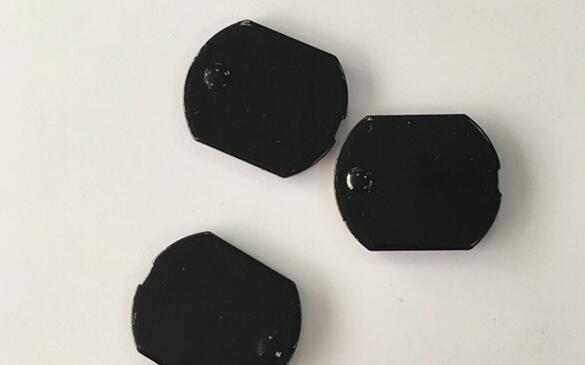

Name:RFID UHF Tags PCB Material Waterproof Anti Metal Tags
weight:5.8g
dimension:44 x 36 x 2mm/1.73x 1.42 x 0.08inch
Read Range:up to 3m /9.84ft with Hand-held Reader and 6m/19.69ft with Fixer Reader
IP classification:IP65



goods managerment and speicial environment with IP65.

ITEM

PARAMETER

Device type

Class 1 Generation 2 passive UHF RFID transponder

Air interface protocol

UHF EPC Global Class1 Gen2, ISO 18000-6C

User Memory

EPC: 96bits



Extended memory: 512bits

Operational frequency

860~960MHz

Encapsulation material

Impact Resistant PCB

Applicable surface materials

OFF Metal

Weight

5.8g

Dimensions

44 x 36 x 2mm/1.73x 1.42 x 0.08inch

Read Range

up to 3m /9.84ft with Hand-held Reader and 6m/19.69ft with Fixer Reader

Operating Temperature

-30~85℃ / -22~185℉

Storage Temperature

-40~150℃ / -40~302℉

EEPROM Programming Cycles

10,000 cycle

IP Classification

IP65

- Complete protection against dust

Mounting

Adhesive / Rivet hole

Color

Black/Personalized custom
