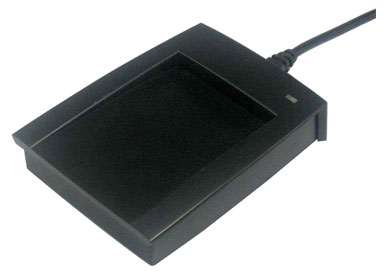

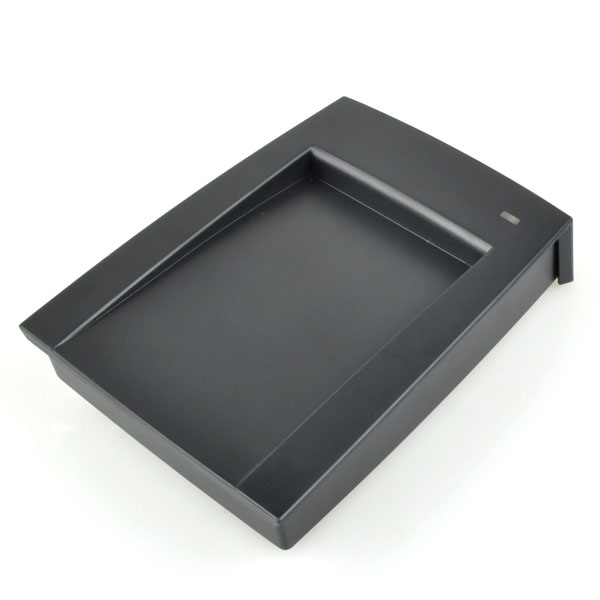

Name:RFID HF Reader

MIFARE ® proximity card reader is complaint with ISO 14443A protocol. Which have multiple interfaces to meet different demands in daily life. For example,Wiegand26,Wiegand34,RS232,USB,etc. Which have widely been used to access control system, time attendance, parking lot system, vehicles management system,  identification, etc. RFID 13.56mhz contactless reader can read MIFARE Classic ® 1K, MIFARE Classic ® 4K, MIFARE Ultralight®,etc. cards, tags, labels, etc.



Frequency:13.56MHz nominal
Transponder:MIFARE Classic ® 1K
Output interface:RS232 or USB
Power Requirements:5V DC
Current: 0.1amp.Nominal
Reading distance:0-7cm
Power provided:key board
Data Baud rate:9600(bit/sec)
Storage Temp.-10°C-85°C
Nominal Weight:0.25kg
Read indication:LED and Beeper
