Feature:

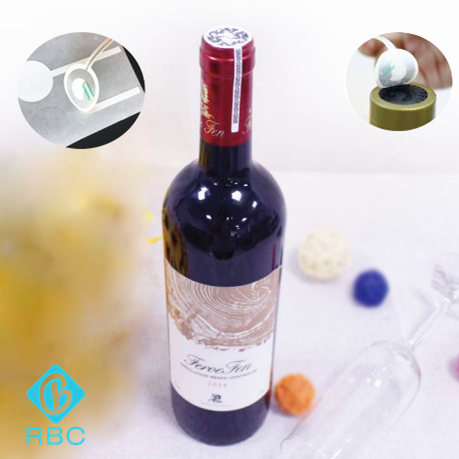

Name: Anti-counterfeiting winebottle label

Frequency: 13.56MHz/860-960MHz

Standard protocol: ISO14443A/ISO18000-6C

Chip: NXP NTAG213/Alien H3(customized)

Memory:144Byte/TID64Bit

Reading rang: 0-10cm/1-10M(relates with the antenna, reader and working environment)

Antenna size:119*21mm/φ21mm/59.5*21mm/93*19mm(customized)

Surface material: Fragile paper

Printing craft: silk screen printing, rotary printing, offset printing

Data retention time: 10years

Reading/writing endurance: 100,000times

Operationg temperature: -20℃~+65℃

Applications: Tracing and anti-counterfeiting management of tobacco, wine,drugs, Cosmetics and auto parts.
