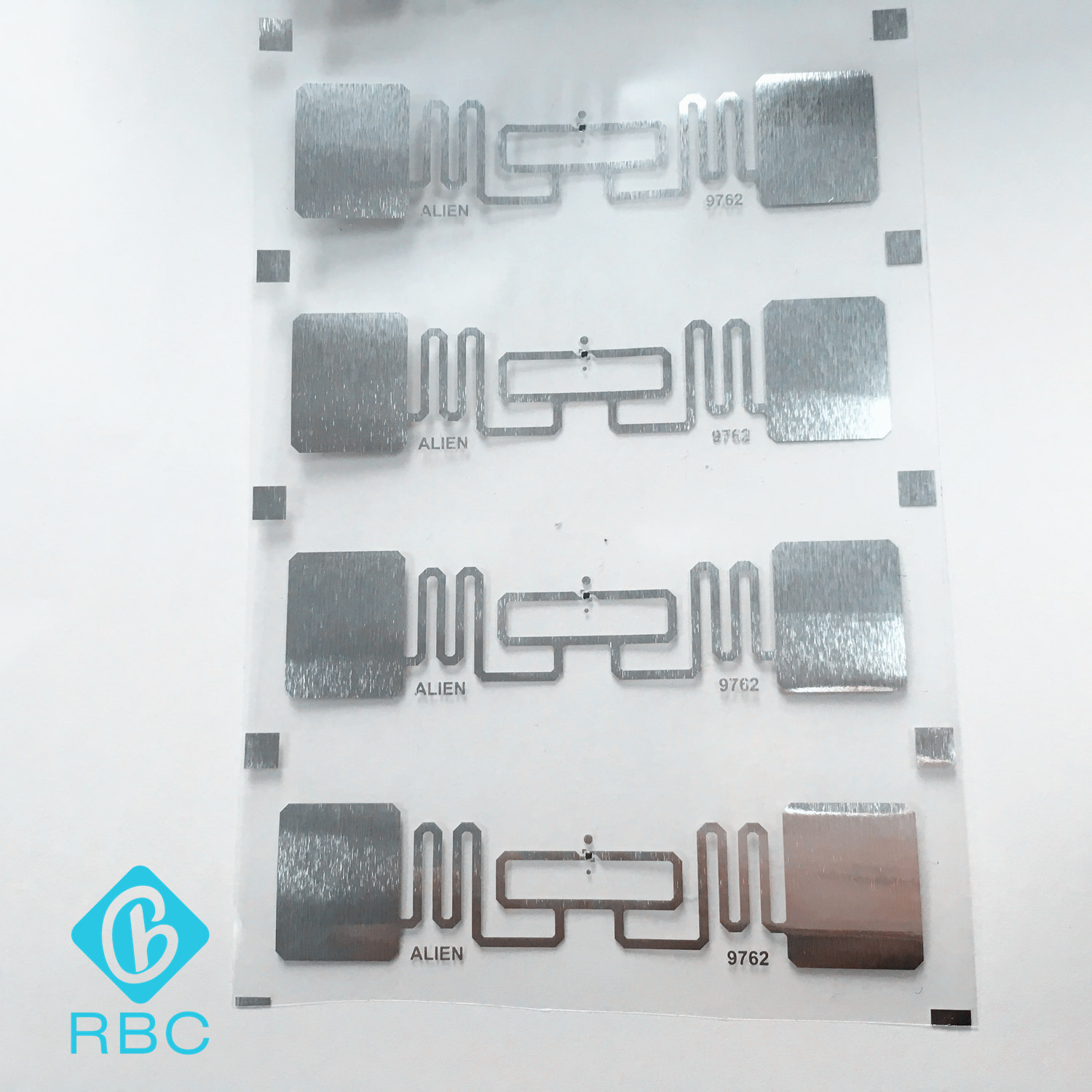

Name:RFID inlay Alien H3
Name:UHF dry inlay
Chip:Alien H 9762
Antenna Size:17x70mm

RFID inlay Alien H3



 Higgs-3 operates at extremely low power levels, yet still provides suffi cient backscatter signal to read tags at an extended range.

It can also be programmed at low RF powerand, in conjunction with a custom command - LoadImage- can be programmed at high

speed. Higgs-3 is implementedin a low cost CMOS process and uses proven and cost effective EEPROM technology.


Higgs-3 offers a fl exible memory architecture that provides for the optimum allocation of EPC and User memory for different use

cases such as legacy part numbering systems and service history. User memory can also be read and or write locked on 64-bit

boundaries, supporting a variety of public/private usage models.



Main Specification:
 Description:
 Chip: Alien Higgs-3/ H4  AZ-9762
Frequency: 860-960MHZ
Protocol Standard: ISO18000-6C
Read/Write Endurance: 100,000 times
Operating Temperature :-20°C to + 55°C

Chip features:
Meets EPCglobal Gen2 (V 1.2.0) as well as
ISO/IEC 18000-6C:2004 / Amd 1:2006 (TypeC)
Worldwide operation in the RFID UHF bands(860-960 MHz)
800-Bits of Nonvolatile Memory
• 96-EPC Bits, extensible to 480 Bits
• 512 User Bits
• 64 Bit Unique TID
• 32 Bit Access and 32 bit Kill Passwords
Pre-Programmed with a unique, unalterable
64-bit serial number
User Memory can be Block Perma-Locked
as well as read password protected in 64 Bit Blocks
Supports all Mandatory and Optional Commands
including Item Level Commands
Custom Commands for high speed programming;
Low power operation for both read and program
Exceptional operating range, up to 10m with appropriate antenna



Applications:

Library books management
Stock management

Ticket and transportation
