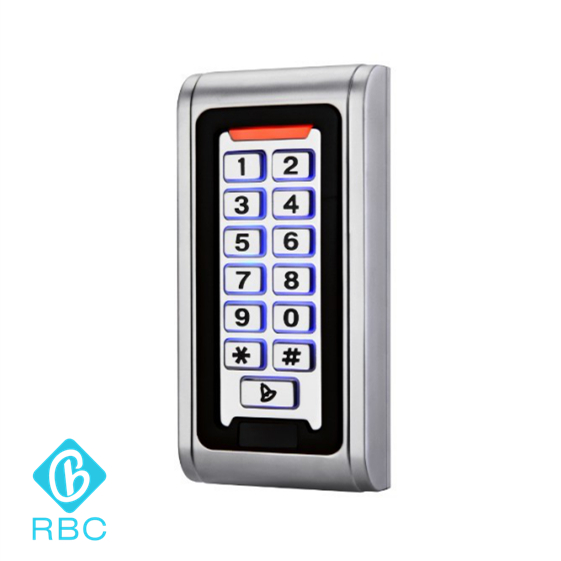

Name:13.56MHZ Access Control Reader with Wiegand Output Keypad
Name:Waterpoof Metal access controler
Size:120 x56x18mm

The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments.

It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. The electronics are fully potted so the unit is

waterproof and conforms to IP68. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards,13.56MHz

Mifare cards. The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad. These features make the unit an ideal choice

for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.


Technical parameters:

Work Voltage: DC9-28V

Static Current: ≤30mA

Reading Range: 3~8cm

Capacity: 2000 users

Environment Temperature: -25°C~60°C

Environment Humidity: 10%~90%

Electric lock output: ≤3A

Alarm output: ≤20A

Output short-circuit protection time: ≤100μS

Open-door time: 0 ~ 99 seconds (adjustable)

Size: 120 *56*18mm


Waterproof, conforms to IP68 Strong Zinc Alloy Electroplated anti-vandal caseFull programming from the keypad2000 uses, supports Card, PIN, Card + PIN Can be used as a stand

alone keypadBacklight keysWiegand 26 input for connection to external readerWiegand 26 output for connection to a controller      Adjustable Door Output time, Alarm time, Door

Open time Very low power consumption (30mA) Fast operating speed, <20ms with 2000 usersLock output current short circuit protectionEasy to install and programBuilt in light

dependent resistor (LDR) for anti tamperBuilt in buzzerRed, Yellow and Green LEDS display the working status
