Name:ISO18000 6C EPC Gen2 Vehicle Windshield UHF RFID tag for Car Parking
Material::PET+AL
memory:EPC 128bits/ User 512bits

Overview

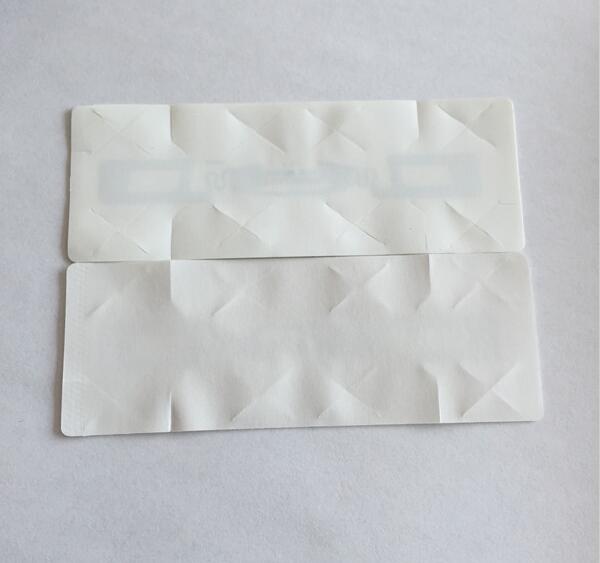

UHF RFID Adhesive Sticker (RS-TS02) belongs to anti-split windshield tag for car parking solution. Its read distance reaches max 8meters and it can be sticked on device directly. It is widely used in vehicle access control, item level management, etc.



Main Features

-Compatibility: ISO18000-6C(EPC Class 1 Gen 2) protocol;

-Frequency Band: 860-960Mhz;

-Chipset: Alien Higgs 3;

-Read Range: 1-8m depends on reader and environment;

-Material: PET+AL;

-Size: 110*40*0.3mm;



Applications

-Asset Management, Item Level management;

-Vehicle and Logistic Management;



Specifications

Model No.

W-H301

Type

UHF RFID Adhesive Sticker

Working frequency

Global 860-960Mhz

Protocol

ISO18000-6C/EPC Class 1 Gen2

Read &Write distance

1-8m depends on reader and environment;

Memory

EPC 128bits/ User 512bits

Data retention

10years

Programming cycles

Anti-collision algorithm,10,000 cycle for repeated delete/write

Unit size

90*40*0.3mm

Net weight

2g

Operating temperature

-20 ~ +50°C

Humidity

5%~95%(non-condensing)

Material

PET+AL
