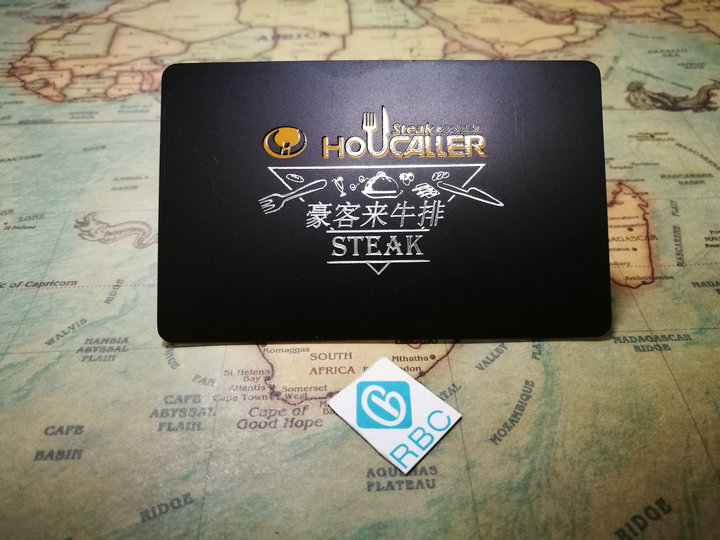

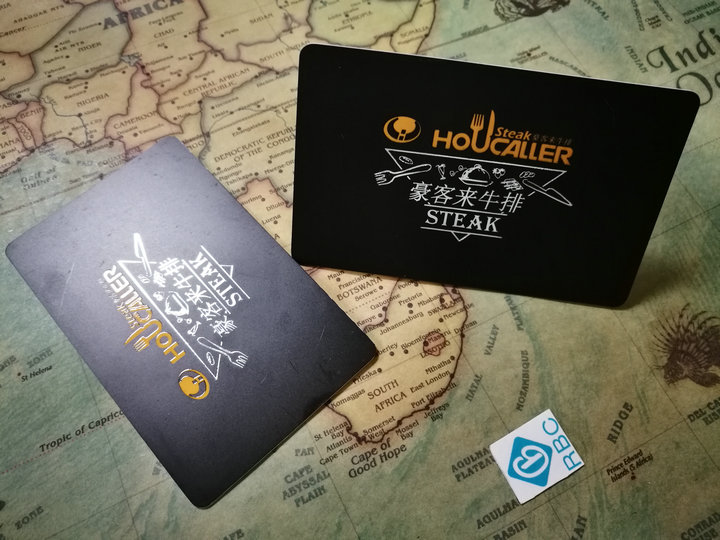

Name:Passive Contactless Rfid ID Chips Smart Card Ultralight C
Material::PVC, PET
size:85.5540.82mm Or Customized

Detailed Product Description

Origin:

Xiamen, China

Item Type:

Ultralight C Card

Protocol Standard:

ISO14443A

Operation Frequency:

13.56mhz

Dimension:

85.5*54*0.82mm Or Customized

Material:

PVC, PET

Endurance:

10 Years

Feature:

Contactless

Unit Weight:

About 6.2 G

User Memory:

1536 Bits

Color:

Full Color Offset Printing ,Silk-screen Printing, Silver/Gold Silk-screen Printing Background

Chip:

MIFARE Utralight C

Surface:

Lamination Glossy, Frosted, Sport UV, Others Special Request







Key features:

    Fully compliant with ISO/IEC 14443 parts 1-3, Type A (including anti-collision)

    1536 bits (192 bytes) EEPROM memory

    Protected data access via 3-pass Triple DES authentication

    Memory structure as in MIFARE Ultralight (pages of 4 byte)

    Backwards compatibility to MIFARE Ultralight due to compatible command set

    16 bit one-way counter

    Unique 7 byte serial number (UID)

Key applications for MIFARE Ultralight C are Public Transportation, Event Ticketing, Loyalty and NFC Forum Tag Type 2.



Description:

1.         Chip: MIFARE Ultralight C

2.         Frequency: 13.56MHz

3.         User memory: 1536 bits

4.         Protocol: ISO14443A

5.         Read range: 0-5cm

6.         Read/Write Endurance: 100,000 times

7.         Data rate: 106 kb/s

8.         Operating Temperature :-20°C to + 55°C



Applications:

Public transportation

Access management such as employee, school or campus cards

Electronic toll collection

Closed loop micro payment

Car parking

Internet cafes

Loyalty programs
