PRODUCT CODE

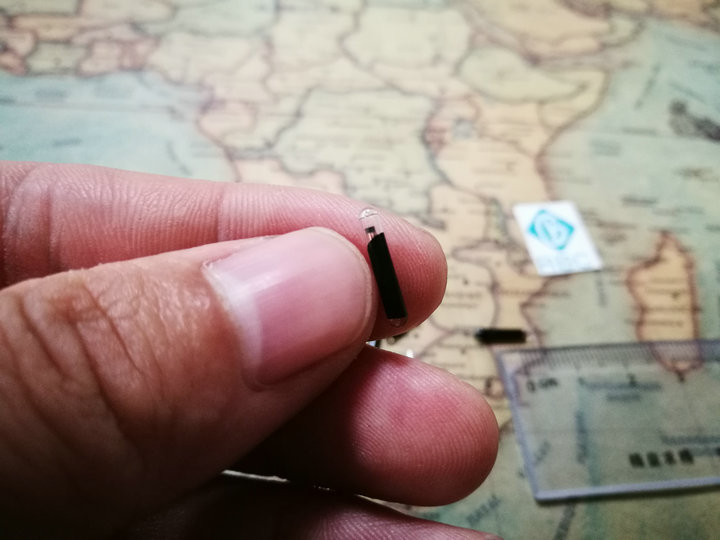

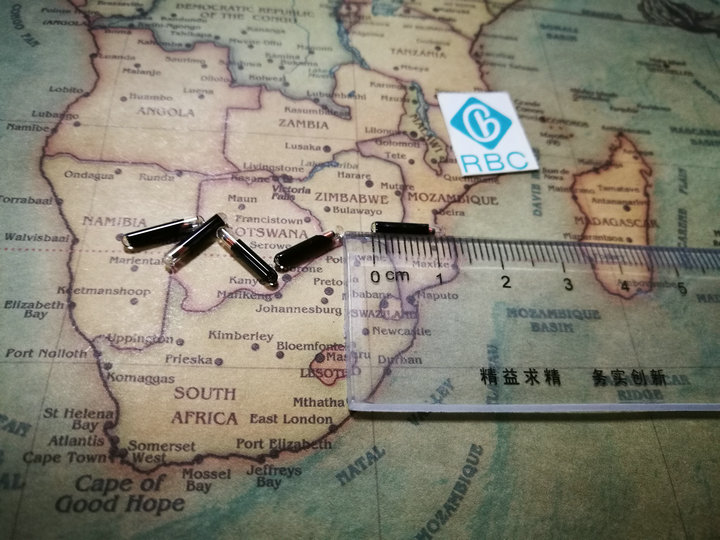

RFID Glass Capsule Transponder Tag

Frequency

125KHz/134.2  +-2KHz

Standard and Protocol

ISO 11784/11785

Transmission Principle

Full Duplex (FDX-A/B), Half Duplex(HDX), EM ID

IC Type

T5577, EM4305, HITAG S256, CET5999, EM4200

Data Memory

330bits,512bits,256byte,1024bits, 64bits

Dimension

1.4x8, 1.5x8, 2x6, 2.12x8, 2.12x10, 2.12x12, 3.85x32, 4x34mm

Reading Range

6-10cm by our handheld animal reader H20-F-G1;

30-50cm upon our long range reader PI-80

Operating Temperature

-25oC to 85oC

Storage Temperature

-40oC to 90oC

Weight

95  20 mg for 2x12mm; 34mg for 1.4x8mm

Write Endurance

> 1,000,000 cycles

Memory Retention

> 20 years

Case Material

Cylindrical Bio-glass Schott 8625

EMC

Not affected by Normal Electromagnetic Interference or X-Rays

Signal Penetration

No known Blockage by non-magnetic material

Power Source

No Battery Required
