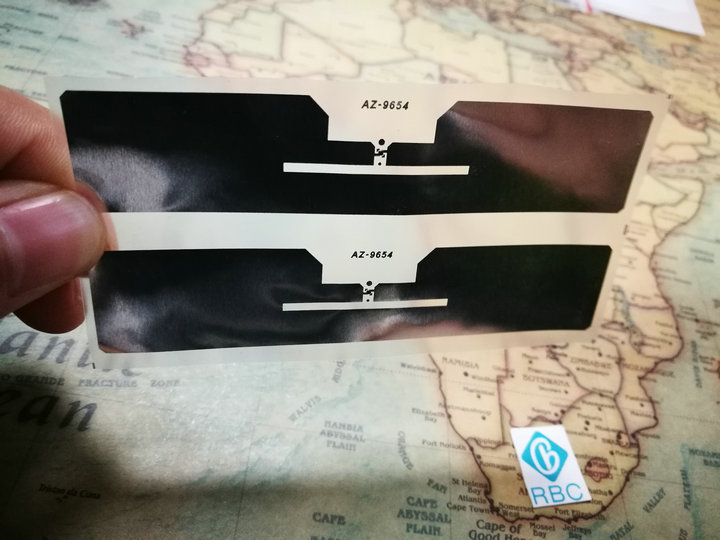

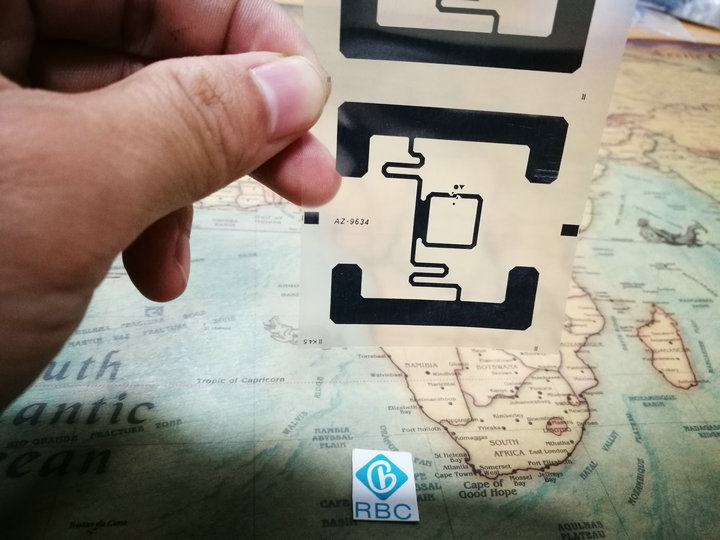

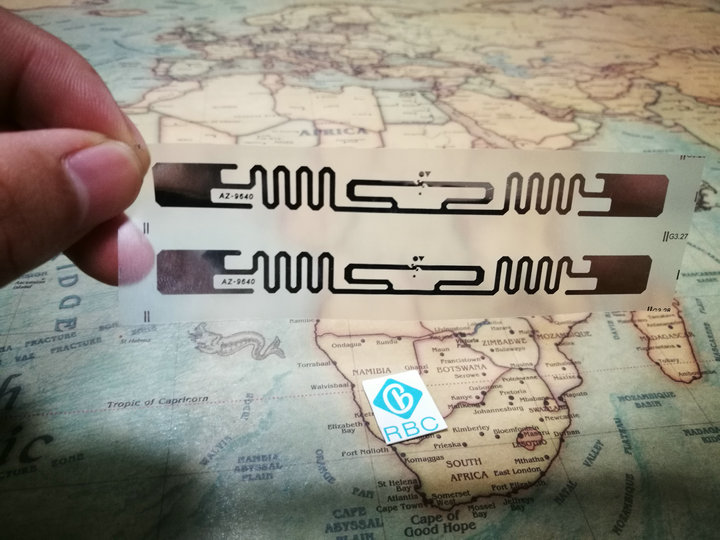

Name:UHF RFID Tags Alien H3 label for Ticket and transportation logistics tracking
chip available:Alien Higgs-3
Frequency:860-960MHZ

Description:

1.         Chip:Alien Higgs-3

2.         Frequency: 860-960MHZ

3.         Protocol Standard: ISO18000-6C

4.         Read/Write Endurance: 100,000 times

5.         Operating Temperature :-20°C to + 55°C



Chip features:

Meets EPCglobal Gen2 (V 1.2.0) as well as
ISO/IEC 18000-6C:2004 / Amd 1:2006 (Type
C)
Worldwide operation in the RFID UHF bands
(860-960 MHz)
800-Bits of Nonvolatile Memory
• 96-EPC Bits, extensible to 480 Bits
• 512 User Bits
• 64 Bit Unique TID
• 32 Bit Access and 32 bit Kill Passwords
Pre-Programmed with a unique, unalterable
64-bit serial number
User Memory can be Block Perma-Locked
as well as read password protected in 64 Bit
Blocks
Supports all Mandatory and Optional Commands
including Item Level Commands
Custom Commands for high speed programming;
30 tags per second for the 96-bit EPC
number
Low power operation for both read and
program
Exceptional operating range, up to 10m with
appropriate antenna



FEATURE

DESCRIPTION

BENEFIT

Industry Leading Sensitivity

Industry leading tags performance in challenging
RF environments.

Saves money: Reduces the number of read points and/or minimizes tag size.

800-Bits of NVRAM

Larger memory RFID IC including 96-480 bits of
EPC or up to 512-bits of user memory

Provides fl exibility for local storage or for large bit-count EPC needs.

Dynamic Authentication

Enhanced IC security using a non-digital, unique
and non-cloneable “finger-print”.

Practically eliminates copied tags being applied
to counterfeit or goods of higher value.

Applications:

Library books management

Stock management

Ticket and transportation
