Name:UHF Garment/Textile Laundry tag
Name:Washable laundry tag
Material:Textile
Chip:NXP UCODE

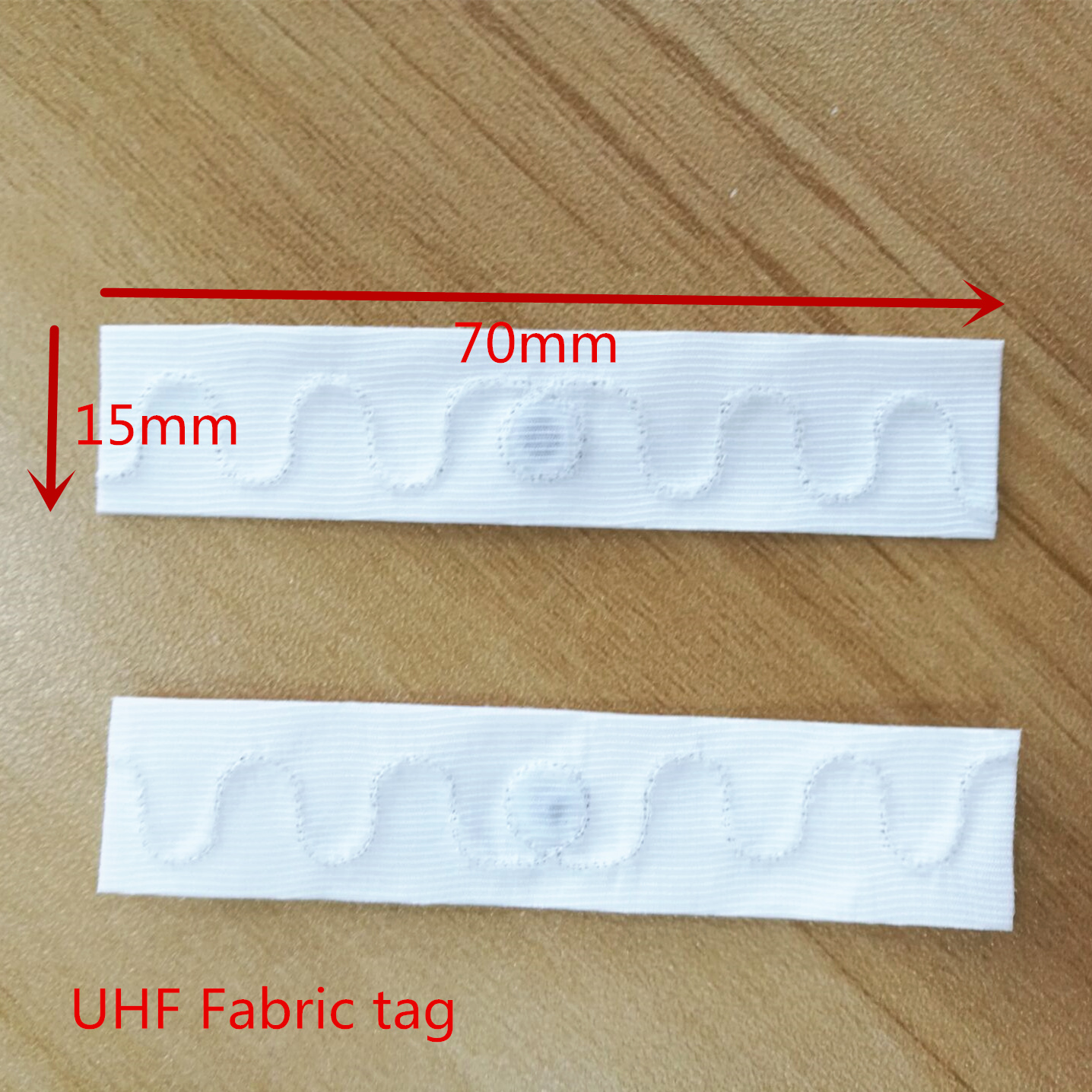

Size:70X15X1.45mm

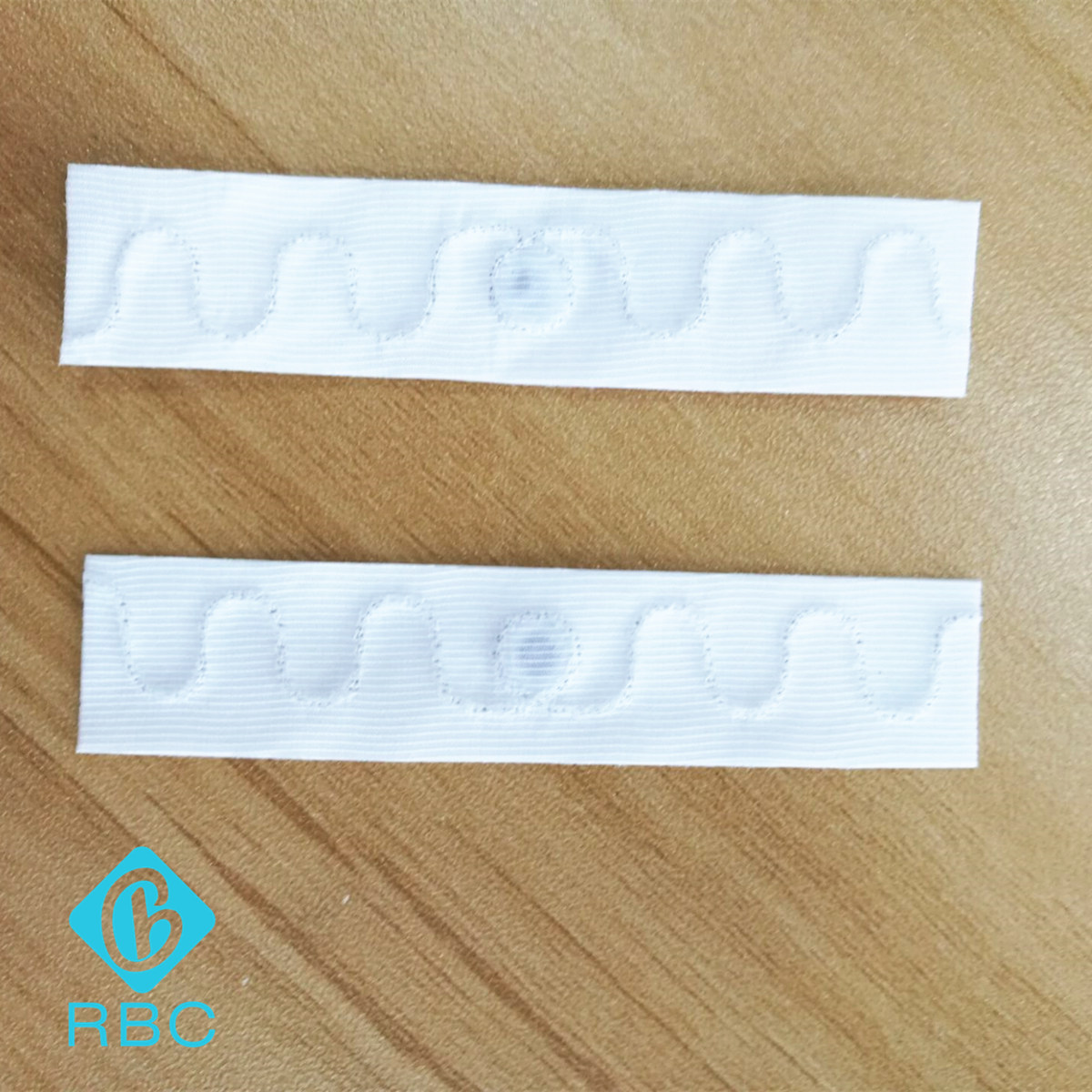

Washable UcodeGen2 UHF Garment/Textile laundry ID tracking tag

The tag is suitable for laundry, linen industrial washed application. It can bear 180ºC high

temperature ironing and 200 times cycling industrial washing.

The performance is stale and reliable


Specification
Name Textile ID TAG
Protocol EPC CLASS1 Gen 2 / ISO 18000-6C
Work Frequency 840-960MHZ
Memory capacity  EPC 128bit, User 32bits, password 32 bits, TID 96 bits
Work mode Read/Write
Storage time >10years
Erasable times >100,000times
Life cycle >200 times( one year)
Material Soft textile
Tag polarization Linear polarization
Read range >2meters(depend on reader and working environment)
Color White( customized optional)
N.W. 1.1g/pc
Unit Dimension 70*15*1.45mm (customized size optional)
Package dimension 430*210*270mm( 4200pcs/package)
Working Tem. -25ºC~+70ºC
Ironing Tem.(press 4bar) 85ºCwith 60 minutes, 120ºC with 10minutes, 150ºC with 4 minutes, 180ºC with 10 seconds
Humidity 8-100% RH
Certificate ROHS







Reliability Testing
 RoHS Tag's materials certified by SGS
 Working Temperature -25ºC to 70ºC
 Ironing temperature
 (4bar when pressurized)
85ºC 60min, 120ºC 10min, 150ºC 4mins, 180ºC 10sec.
 Humidity 8~100% RH
 High and low temperature  alternating test 40ºC to +150ºC 7 times high and low temperature alternating cycle, total for 2 days test



Application: Clothing management, uniform management, Laundry
management,Hotel Linen management etc.
